Tonbandgerät 7300 D

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1968 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 224670

• Picture

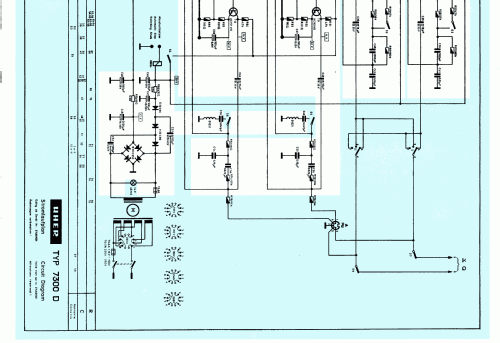

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tonbandgerät 7300 D - Uher Werke; München

• Shape
• Tablemodel, with any shape - general.

• Notes

• Uher Tonbandgerät Type: 7300 D

  ---

  4 Spur Stereo 9,5 / 19 cm/sek Bandgeschwindigkeit.
  Ohne Endsstufen und Lautsprecher.

  Siehe auch hier:  Uher 7000D

• Author
• Model page created by Friedhelm Schaik. See "Data change" for further contributors.
