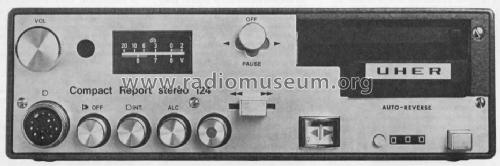

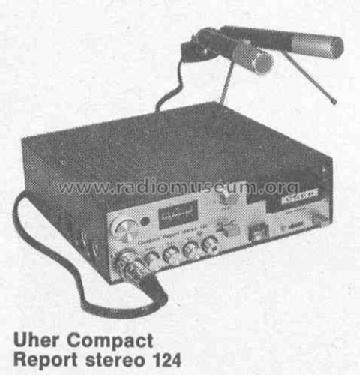

Compact Report stereo 124 37 Transistoren

Compact Report stereo 124; Uher Werke; München (ID = 104456) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 104457) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 104458) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 104459) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 289456) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 289457) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 289458) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 289459) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 289460) R-Player

Compact Report stereo 124; Uher Werke; München (ID = 1132634) R-Player
Compact Report stereo 124; Uher Werke; München (ID = 1134196) R-Player Compact Report stereo 124; Uher Werke; München (ID = 104678) R-Player
Compact Report stereo 124; Uher Werke; München (ID = 380562) R-Player Compact Report stereo 124; Uher Werke; München (ID = 471204) R-Player
Use red slider bar for more.
Compact Report stereo 124; Uher Werke; München (ID = 1134196) R-Player
Uher Werke; München: Compact Report stereo 124 [R-Player] ID = 1134196 933x516

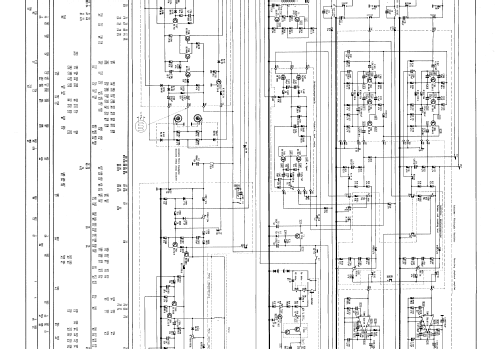

Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Report stereo 124 37 Transistoren, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1973/1974 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 37:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Compact Report stereo 124 [37 Transistoren] - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 185 x 57 x 180 mm / 7.3 x 2.2 x 7.1 inch
Notes ICs: 2.
HiFi-Stereo-Cassetten-Recorder. Abschaltbare Aussteuerungsautomatik; eingebautes Kondensatormikrofon; automatische Laufrichtungsumschaltung bei Wiedergabe (Auto-Reverse), Laufrichtungsanzeige mit Instrument; Stereo-NF-Verstärker mit 2 Endstufen je 1,3 W. Stromversorgung auch mit Akku Z213/Z215 oder einlegbarem Netzteil Z131 oder Autobatterie.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
