CV140

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1970–1973

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 28067

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 31

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 200-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 140 W (max.)

• Material
• Metal case

• from Radiomuseum.org

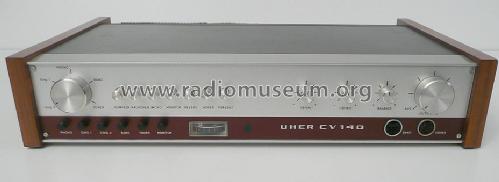

• Model: CV140 - Uher Werke; München

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 410 x 82 x 250 mm / 16.1 x 3.2 x 9.8 inch

• Notes
• HiFi-Stereo-Verstärker. Ausgangsleistung: 2× 35 W (Sinus); Übertragungsbereich: 20-20000 Hz.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Price in first year of sale
• 888.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (4)
• Csabai Dániel, Hangerősítő kapcsolások, Budapest 1976.
