M 512

M 512; Uher Werke; München (ID = 2589582) Microphone/PU M 512; Uher Werke; München (ID = 2589583) Microphone/PU
M 512; Uher Werke; München (ID = 2589584) Microphone/PU M 512; Uher Werke; München (ID = 105732) Microphone/PU

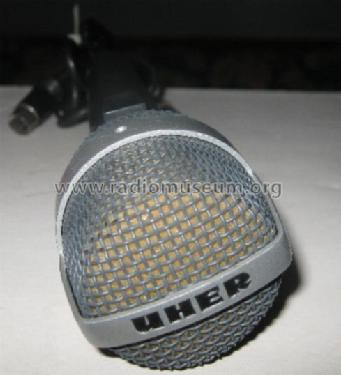

M 512; Uher Werke; München (ID = 105733) Microphone/PU M 512; Uher Werke; München (ID = 1376739) Microphone/PU
M 512; Uher Werke; München (ID = 1477091) Microphone/PU M 512; Uher Werke; München (ID = 1477093) Microphone/PU

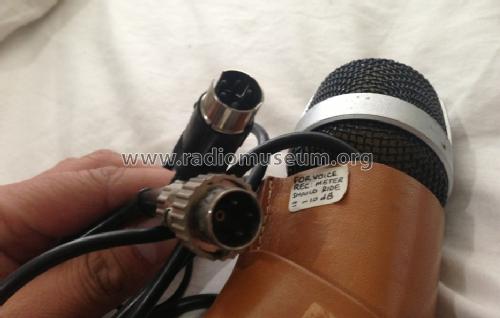

M 512; Uher Werke; München (ID = 1477095) Microphone/PU M 512; Uher Werke; München (ID = 1477096) Microphone/PU
Use red slider bar for more.
M 512; Uher Werke; München (ID = 2589582) Microphone/PU
Uher Werke; München: M 512 [Microphone/PU] ID = 2589582 788x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model M 512, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1963–1966 Category: Microphone or Pick-up element
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: M 512 - Uher Werke; München
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 55 x 180 x 0 mm / 2.2 x 7.1 x 0 inch
Notes Dynamisches Fernsteuer-Mikrofon M 512 für 4000 Report-L; Spezial Mikrofon mit Steuerschalter, Windschutzkappe und Nierencharakteristik; Frequenzbereich 70···14000 Hz.
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1963/1964 (bis 1965/66)

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
