Stereo Mix-500 A124 ab 512401001

Stereo Mix-500 A124; Uher Werke; München (ID = 278193) Ampl/Mixer

Stereo Mix-500 A124; Uher Werke; München (ID = 278194) Ampl/Mixer

Stereo Mix-500 A124; Uher Werke; München (ID = 278195) Ampl/Mixer

Stereo Mix-500 A124; Uher Werke; München (ID = 278196) Ampl/Mixer
Stereo Mix-500 A124; Uher Werke; München (ID = 1133544) Ampl/Mixer Stereo Mix-500 A124; Uher Werke; München (ID = 440930) Ampl/Mixer
Stereo Mix-500 A124; Uher Werke; München (ID = 631461) Ampl/Mixer Stereo Mix-500 A124; Uher Werke; München (ID = 631460) Ampl/Mixer
Stereo Mix-500 A124; Uher Werke; München (ID = 631459) Ampl/Mixer Stereo Mix-500 A124; Uher Werke; München (ID = 631462) Ampl/Mixer
Stereo Mix-500 A124; Uher Werke; München (ID = 631463) Ampl/Mixer Stereo Mix-500 A124; Uher Werke; München (ID = 631778) Ampl/Mixer
Stereo Mix-500 A124; Uher Werke; München (ID = 1596195) Ampl/Mixer
Use red slider bar for more.
Stereo Mix-500 A124; Uher Werke; München (ID = 1133544) Ampl/Mixer

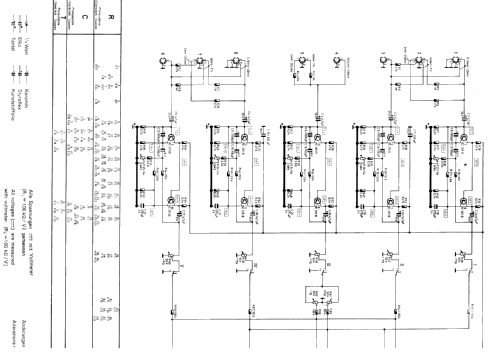

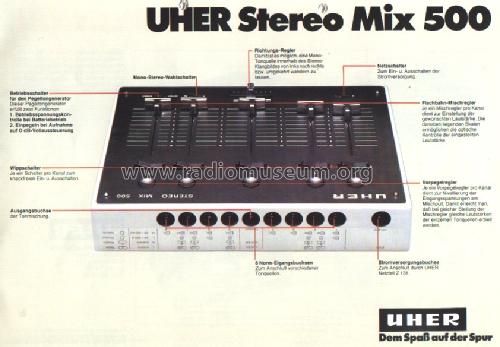

Uher Werke; München: Stereo Mix-500 A124 [Ampl/Mixer] ID = 1133544 933x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Mix-500 A124 ab 512401001, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1974/1975 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 17:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Mix-500 A124 [ab 512401001] - Uher Werke; München
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

5 Kanal Mono oder 2 Kanal Stereo Mischpult mit eingebautem 1kHz-Pegelgenerator zur Aussteuerungskontrolle.

Batteriebetrieb oder Netzbetrieb mit Netzanschluß- und Ladegerät Z131 (15VDC) möglich.

Anstelle der Transistoren aus dem Schaltplan (BC 315B) wurden teilweise auch BC 415B verbaut. Gleiches beim FET S2385 -> J174.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data Handbuch VDRG 1974/1975
Mentioned in -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
