• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 9999/9999

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28888

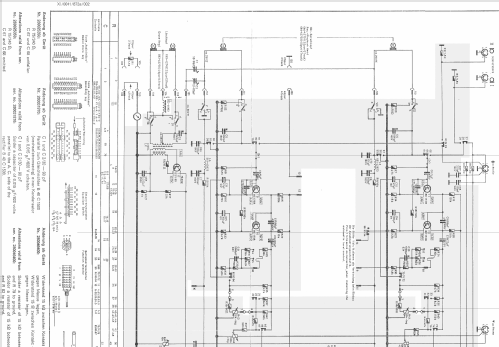

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Dublette ID = 28570 - Uher Werke; München

• Dimensions (WHD)
• 435 x 175 x 332 mm / 17.1 x 6.9 x 13.1 inch

• Notes
• 20 Trans. / 4 Dioden; Mattlack, weiss

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 812.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
