- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ultra Electric Ltd.; London
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182875
-
- alternative name: Ultra Radio and Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- AF124 AF125 AF116 AF115 AF116 AF116 AC155 or. OC71 AC113 or. OC81D AC154 or. OC81 AC154 or. OC71 AC169
- Main principle
- ZF/IF 475/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6132 - Ultra Electric Ltd.; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13.62 x 6.75 x 3.5 inch / 346 x 171 x 89 mm
- Notes
-

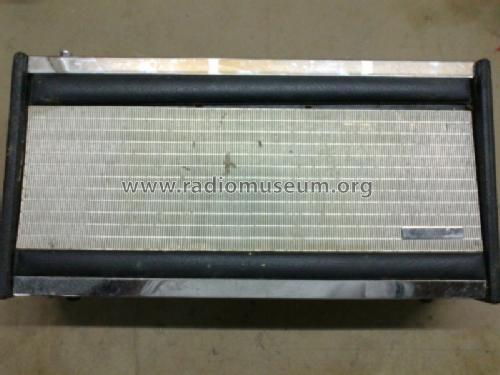

An eleven transistor AM/FM battery portable radio covering MW (185-566 metres), LW (1111-2000 metres), SW (16.7-50 metres) and VHF (87-108 MHz). A permeability-tuned aerial coil is used in place of the ferrite rod aerial when the 'CAR' button is pressed. Battery type PP9. Sockets for earphone, tape, and car aerial. Elliptical loudspeaker 7 x 3⅝ inch.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- ERT Service Chart 1581 dated February 23 1967
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
