Troubadour FM950

Troubadour FM950; Ultra Electric Ltd.; (ID = 59542) Radio

Troubadour FM950; Ultra Electric Ltd.; (ID = 576815) Radio

Troubadour FM950; Ultra Electric Ltd.; (ID = 576816) Radio

Troubadour FM950; Ultra Electric Ltd.; (ID = 1003807) Radio

Troubadour FM950; Ultra Electric Ltd.; (ID = 1003808) Radio
Troubadour FM950; Ultra Electric Ltd.; (ID = 1180648) Radio Troubadour FM950; Ultra Electric Ltd.; (ID = 59539) Radio
Troubadour FM950; Ultra Electric Ltd.; (ID = 1180653) Radio Troubadour FM950; Ultra Electric Ltd.; (ID = 1180654) Radio
Use red slider bar for more.

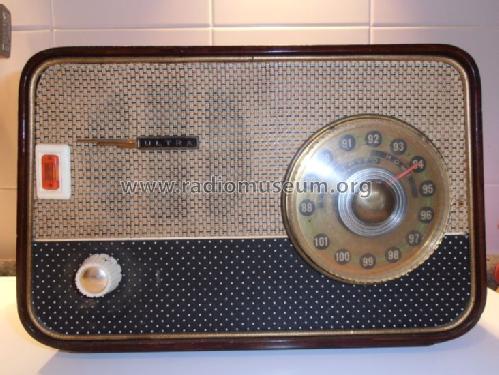

Troubadour FM950; Ultra Electric Ltd.; (ID = 1180648) Radio
Ultra Electric Ltd.;: Troubadour FM950 [Radio] ID = 1180648 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Troubadour FM950, Ultra Electric Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UF89 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Troubadour FM950 - Ultra Electric Ltd.; London
Shape Tablemodel, with any shape - general.

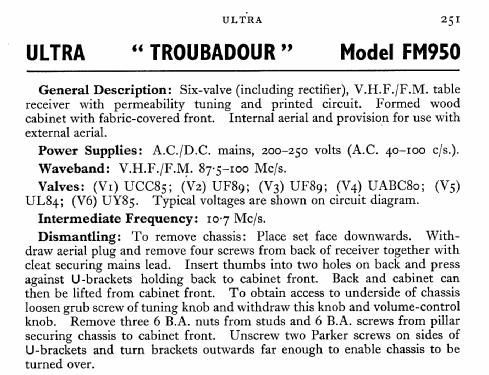

External source of data Trader 1395

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Ultra Electric Ltd.; London
Here you find 218 models, 129 with images and 149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
