Troubadour U6961

Troubadour U6961; Ultra Electric Ltd.; (ID = 1003773) Radio

Troubadour U6961; Ultra Electric Ltd.; (ID = 1003774) Radio
Troubadour U6961; Ultra Electric Ltd.; (ID = 795445) Radio Troubadour U6961; Ultra Electric Ltd.; (ID = 795369) Radio

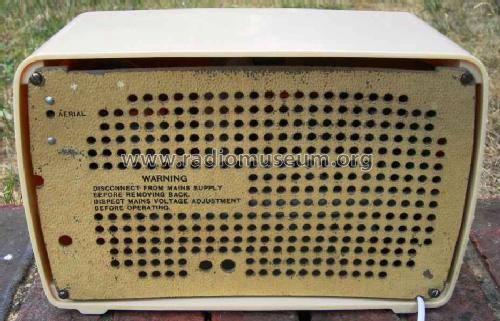

Troubadour U6961; Ultra Electric Ltd.; (ID = 795924) Radio
Use red slider bar for more.
Troubadour U6961; Ultra Electric Ltd.; (ID = 795445) Radio
Ultra Electric Ltd.;: Troubadour U6961 [Radio] ID = 795445 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Troubadour U6961, Ultra Electric Ltd.; London:
My 1953 Ultra U6961 AC/DC 5 valve MW/LW radio in its ivory urea-formaldehyde cabinet. It has the same cabinet as the U696 and the same chassis as the U7961 with Mullard valves.

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-120; 121-130; 200-214; 215-234; 235-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Troubadour U6961 - Ultra Electric Ltd.; London
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 12 x 7.5 x 6 inch / 305 x 191 x 152 mm
Notes Same cabinet as the U696 model, same chassis as the U7961.
Mentioned in -- Original-techn. papers. (Trader sheet 1151)

Model page created by Peter Hoddow. See "Data change" for further contributors.
