Doppel-Oszillograph
Use red slider bar for more.
UNBEKANNTE FIRMA D /: Doppel-Oszillograph [Equipment] ID = 422959 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Unknown, Custom Built | ||||
|---|---|---|---|---|---|
| Year: 1948 ?? | Category: Service- or Lab Equipment | ||||
| Valves / Tubes | 13: EF14 EF14 EF14 EF14 EF14 EF14 EF14 EF12 EL11 STV150/20 STV150/20 AZ12 RFG5 LB8 LB8 |
| Main principle | none |
|---|---|
| Wave bands | - without |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | |
| Power out | |
| from Radiomuseum.org | Model: Doppel-Oszillograph - UNBEKANNTE FIRMA D / A / CH - |
| Material | Metal case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 340 x 280 x 330 mm / 13.4 x 11 x 13 inch |

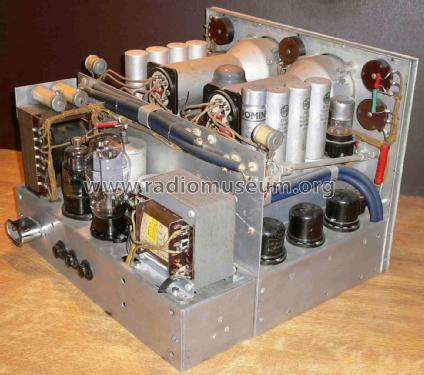

| Notes | Zwei Bildschirme nebeneinander; gemeinsame Zeitablenkung, getrennte Y-Eingänge. Vorläufer der Zweikanalgeräte, benötigt dafür keinen elektronischen Kanalumschalter. |
| Net weight (2.2 lb = 1 kg) | 17.8 kg / 39 lb 3.3 oz (39.207 lb) |
| Source of data | - - Data from my own collection |
