- Country
- Germany
- Manufacturer / Brand
- UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
- Year
- 1950 ??
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 252269
-
- alternative name: Unknown, Custom Built
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org

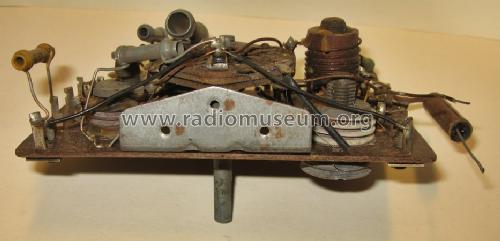

- Model: KML-Spulensatz - UNBEKANNTE FIRMA D / A / CH -
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 115 x 78 x 62 mm / 4.5 x 3.1 x 2.4 inch
- Notes
-
Kompletter Spulensatz für den Selbstbau von KML-Superhet-Empfängern;
Bereichsumschaltung mittels 3-stufigem Drehschalter; Trägermaterial: Pertinax; Lötösenanschlüsse.
- Net weight (2.2 lb = 1 kg)
- 0.166 kg / 0 lb 5.9 oz (0.366 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
