• Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 329207
    • alternative name: Unknown, Custom Built

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

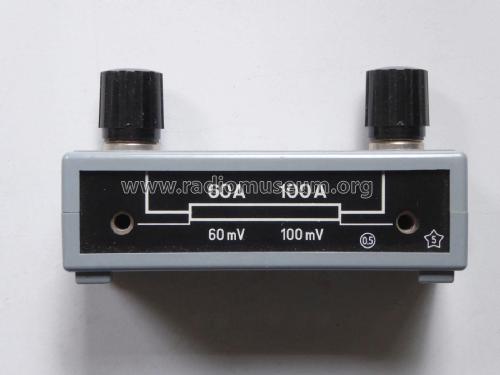

  • Model: Shunt, Messwiderstand 100/60 A - UNBEKANNTE FIRMA D / A / CH -
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 110 x 35 x 44 mm / 4.3 x 1.4 x 1.7 inch
  • Notes
  • Verwendet u.a. fuer Messbereichserweiterung zum Messen von hohen Stroemen.

    Abmessung: Hoehenangabe ohne Buchsen.

  • Net weight (2.2 lb = 1 kg)
  • 0.190 kg / 0 lb 6.7 oz (0.419 lb)
  • Author
  • Model page created by Matthias Buhl. See "Data change" for further contributors.
