• Year
  • 1993 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 89808
    • alternative name: Unknown, Custom Built

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 7-15 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

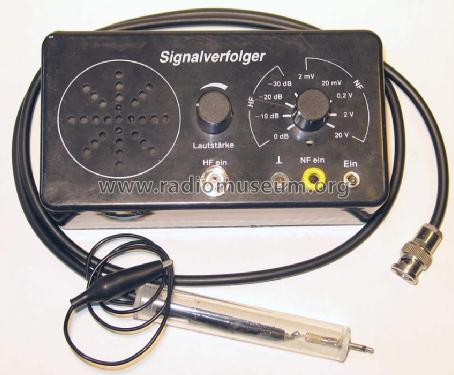

  • Model: Signalverfolger E185G - UNBEKANNTE FIRMA D / A / CH -
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 150 x 65 x 80 mm / 5.9 x 2.6 x 3.1 inch
  • Notes
  • Signalverfolger als Bausatz mit 68 Einzelteilen: NF-Verstärker 15 Hz-20 kHz, 2 mV-2 V Eingang in 5 Stufen, HF-Eingang 300 kHz-50 MHz mit Dioden-Tastkopf 0 bis -30 db in 4 Stufen. Vertrieb über Salhöfer-Elektronik.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
