Studio Portable II

Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039799) Television

Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039800) Television
Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039793) Television Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039795) Television
Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039797) Television Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039798) Television
Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039796) Television Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039801) Television
Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039802) Television Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039803) Television
Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 816698) Television Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 816699) Television
Use red slider bar for more.

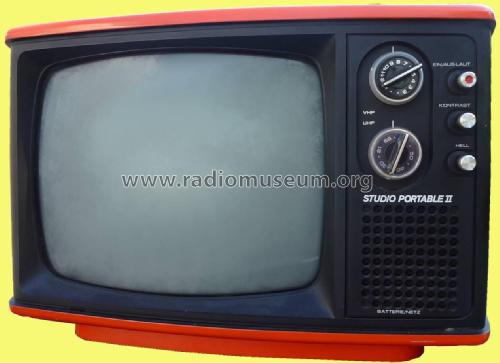

Studio Portable II ; UNBEKANNTE FIRMA D / (ID = 2039793) Television
UNBEKANNTE FIRMA D /: Studio Portable II [Television] ID = 2039793 1264x919
Select picture or schematic to display from thumbnails on the right and click for download.
For model Studio Portable II, UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»:
aus ebay. Auktion: 131934824891 Anbieter: passionslaeufer Bild nachbearbeitet

Country:  Germany
Manufacturer / Brand:  UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
alternative name

Unknown, Custom Built
Year: 1978 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Studio Portable II - UNBEKANNTE FIRMA D / A / CH -
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 290 x 300 mm / 15.7 x 11.4 x 11.8 inch
Notes

Studio Portable II;
~29 cm b/w TV with CCIR B/G standard VHF turret & UHF dial tuner, 25/13 W power consumption, Deutsch beschriftet.

Siehe Westport RP-205BN.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
Here you find 431 models, 366 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
