V118

V118; UNBEKANNTE FIRMA D / (ID = 1778099) Ampl/Mixer

V118; UNBEKANNTE FIRMA D / (ID = 1778100) Ampl/Mixer

V118; UNBEKANNTE FIRMA D / (ID = 1778101) Ampl/Mixer

V118; UNBEKANNTE FIRMA D / (ID = 1778102) Ampl/Mixer
Use red slider bar for more.
V118; UNBEKANNTE FIRMA D / (ID = 1778099) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
alternative name

Unknown, Custom Built
Year: 1970 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18: BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC147 BC147 AC127 AC127 AC152 AC152 AD150 AD150 AD150 AD150
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: V118 - UNBEKANNTE FIRMA D / A / CH -
Material Various materials
Shape Book-shelf unit.
Notes

Hi-Fi-Stereo-Verstärker V118.

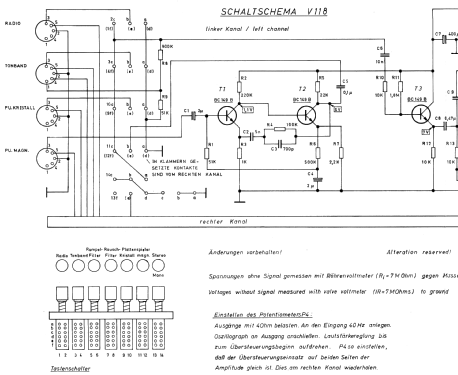

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
