- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155937
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Valves / Tubes
- 2A7 58 Wunderlich 2A5 80
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 155; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

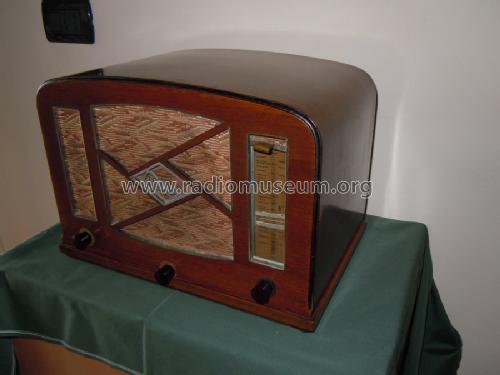

- Model: MU51 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel, with any shape - general.
- Notes
- Scala di sintonia:parlante
Onde medie (m.200-600)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
