• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73857

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

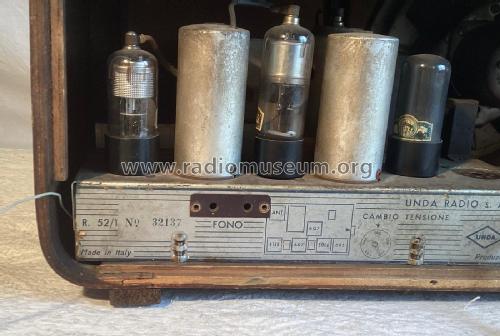

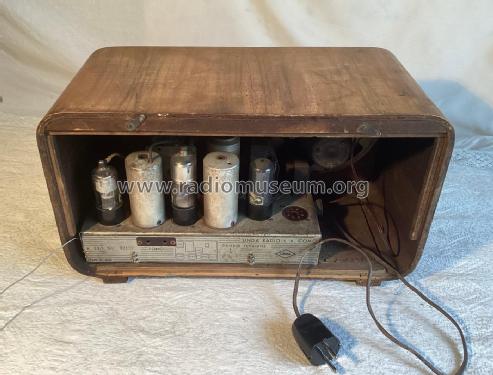

• Valves / Tubes
• 6TE8 6K7 6Q7 50L6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

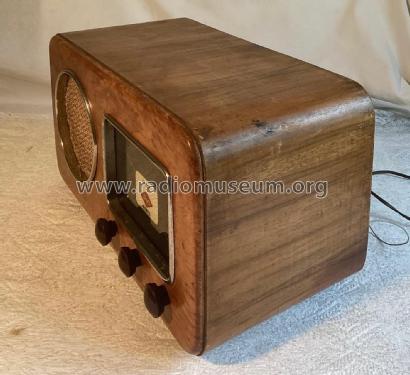

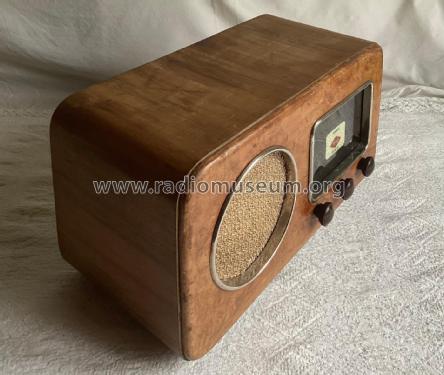

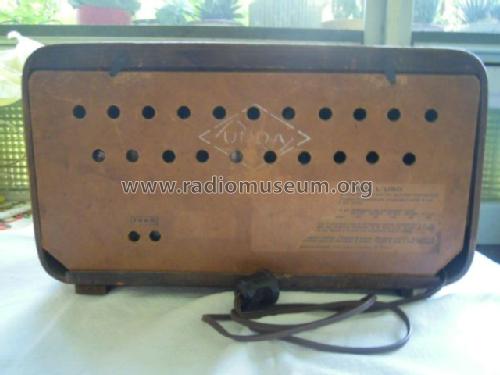

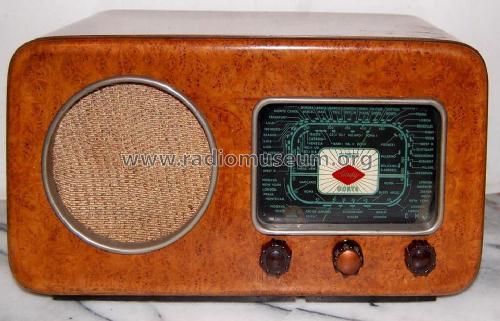

• Model: R52/1 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 230 x 215 mm / 15.7 x 9.1 x 8.5 inch

• Notes

• Sintonia ad induttori variabili.

  Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 346)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
