• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1948–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70848

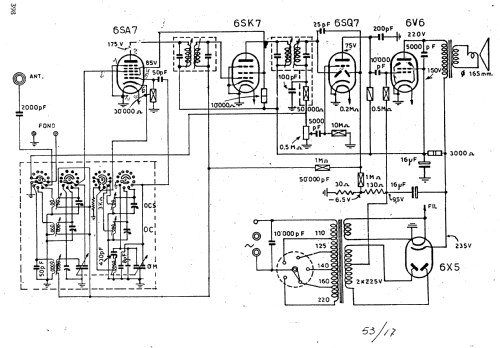

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6K7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Triunda R53/17 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 270 x 210 mm / 20.5 x 10.6 x 8.3 inch

• External source of data
• Eigenes Gerät

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 347)
