- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156257

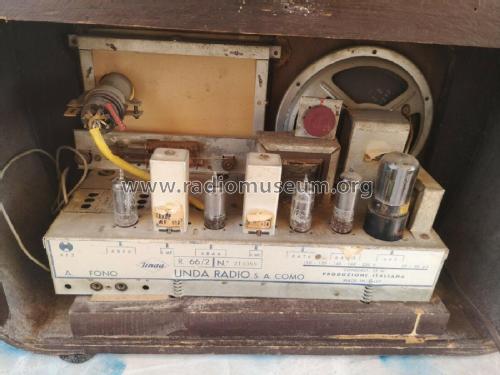

unda R66/2 particolare interno
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R66/2 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 280 x 200 mm / 18.1 x 11 x 7.9 inch
- Notes
- BC and 5x SW.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
