- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118587
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R66/6 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 620 x 340 x 220 mm / 24.4 x 13.4 x 8.7 inch
- Notes
-
6 gamme d'onda: Onde Medie 182 ÷ 578 m. 5 gamme di onde Corte: 19, 25, 31, 49, 75 metri.
Controllo di tono a due posizioni. Ingresso per giradischi.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Literature/Schematics (1)

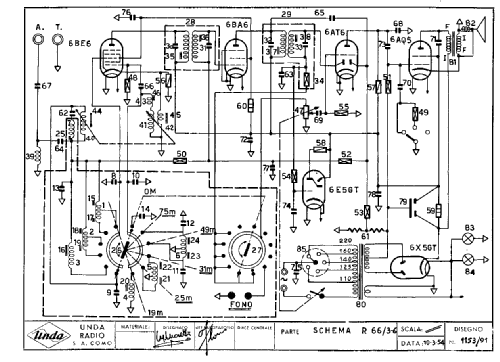

- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
