Tri Unda 69/4
Unda Radio; Como, Dobbiaco
- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1952–1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156462

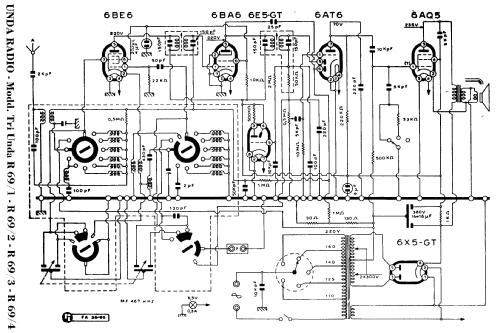

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tri Unda 69/4 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 340 x 320 mm / 21.3 x 13.4 x 12.6 inch
- Notes
- Versione radiofonografo del mod. Tri Unda 69/1.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
