• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98999

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

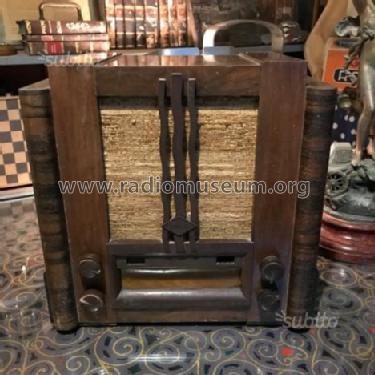

• Model: Triunda 5 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Stesso chassis del Triunda 55, che è però il radiofonografo.

  Scala parlante a tamburo girevole. Controllo di tono.

• Price in first year of sale
• 1,200.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• - - Manufacturers Literature (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
