• Country
• Japan

• Manufacturer / Brand
• Uniden; Tokyo

• Year
• 1993

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 255001

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Details
• Scanner - multiband or special

• Power type and voltage
• Batteries / addl. power jack / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Scanner UBC2500XLT - Uniden; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 190 x 40 mm / 2.8 x 7.5 x 1.6 inch

• Notes

• 400 canaux programmables en 20 banques de mémoires.

  7 canaux WX programmés : NOAA

  14 Bandes de fréquence : de 25MHz à 1.3GHz en AM, NFM, WFM et 5kHz à 50kHz de largeur des canaux suivant les bandes.

  Un trou entre 550MHz et 759 Mhz existe.

  Vitesse de balayage : turbo 100 cx/s, normal 20cx/s.

  Délai de balayage : 2s

  Antenne externe souple (caoutchouc) amovible.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 2,995.00 FF

• Mentioned in

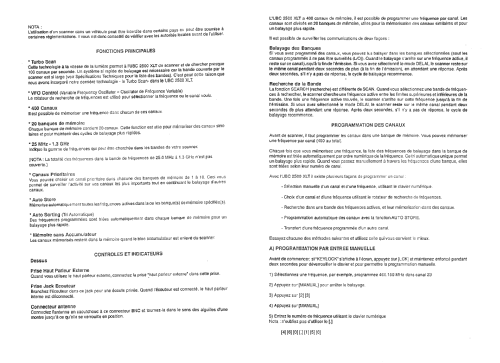

• - - Manufacturers Literature

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
