Delco R-1409

Delco R-1409; United Motors (ID = 445499) Radio

Delco R-1409; United Motors (ID = 445500) Radio

Delco R-1409; United Motors (ID = 634060) Radio

Delco R-1409; United Motors (ID = 634061) Radio

Delco R-1409; United Motors (ID = 634062) Radio

Delco R-1409; United Motors (ID = 634063) Radio
Delco R-1409; United Motors (ID = 803407) Radio Delco R-1409; United Motors (ID = 803416) Radio
Delco R-1409; United Motors (ID = 803418) Radio Delco R-1409; United Motors (ID = 803421) Radio
Delco R-1409; United Motors (ID = 803410) Radio Delco R-1409; United Motors (ID = 803412) Radio
Delco R-1409; United Motors (ID = 1170222) Radio Delco R-1409; United Motors (ID = 634081) Radio
Use red slider bar for more.
Delco R-1409; United Motors (ID = 803407) Radio

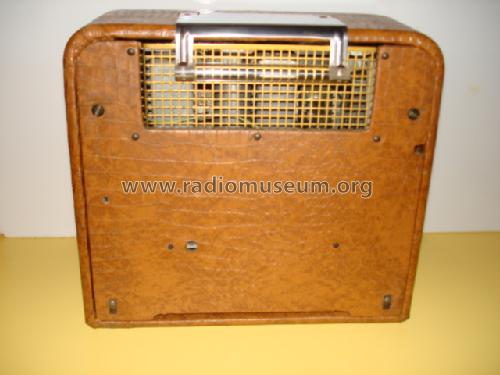

United Motors: Delco R-1409 [Radio] ID = 803407 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R-1409, United Motors Service (Delco)

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC-DC: 105-125 / 7.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Delco R-1409 - United Motors Service Delco
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 295 x 265 x 170 mm / 11.6 x 10.4 x 6.7 inch
Notes The Delco model R-1409 is an Three Power Portable Superheterodyne with Self Contained Loop Antenna. Tuning 550 to 1700 kc.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Mar 1947, Set 15, Folder 475-7)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (January 1947 page 53.)


All listed radios etc. from United Motors Service (Delco)
Here you find 577 models, 312 with images and 548 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
