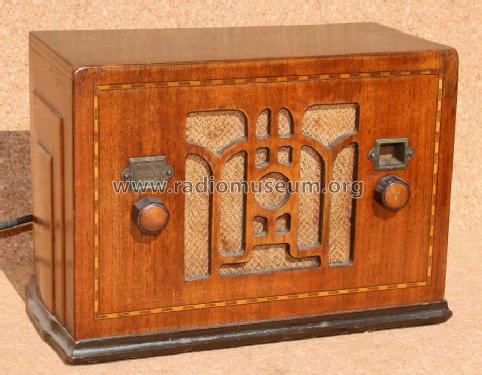

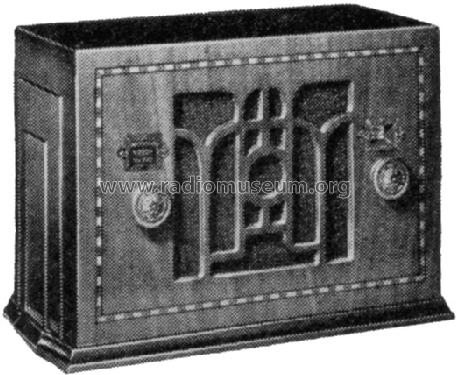

501 Vibro-Power ; United American (ID = 810974) Radio
United American: 501 Vibro-Power [Radio] ID = 810974 901x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 501 Vibro-Power, United American Bosch (Magneto Corporation); Springfield (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  United American Bosch (Magneto Corporation); Springfield (MA)
alternative name

American Bosch Magneto
Brand
Essex
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner

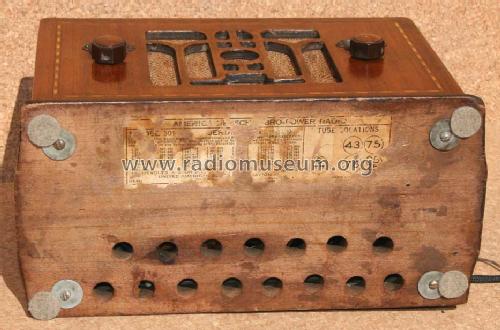

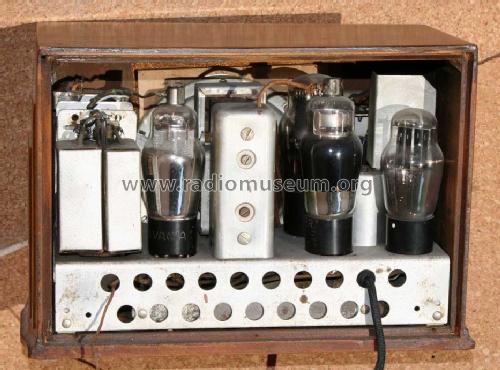

Valves / Tubes 5: 6F7 78 75 43 25Z5
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 501 Vibro-Power - United American Bosch Magneto
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 10 x 7 x 5 inch / 254 x 178 x 127 mm
Notes

Portable "Personal Radio". Receives police calls. AVC. Built-in antenna.

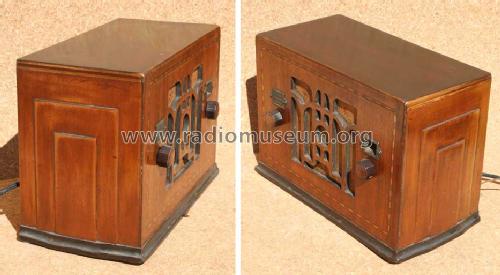

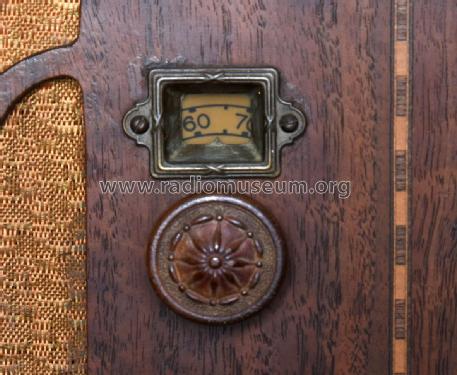

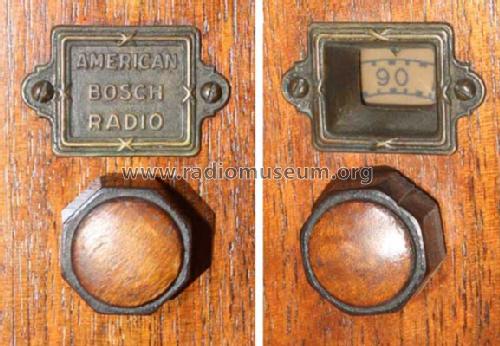

Wood cabinet with hand-rubbed piano-case finish and real marquetry inlay.

Factory price: $31.50. Zipper carrying case No. 500 for $3.00 ($4.00 retail).

Net weight (2.2 lb = 1 kg) 8 lb (8 lb 0 oz) / 3.632 kg
Price in first year of sale 52.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

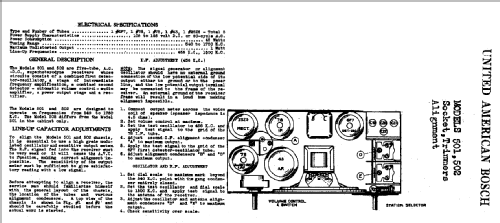

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Rider's Perpetual, Volume 5 = ca. 1934 and before (Riders 5-39, 40 ; 7-2)
Literature/Schematics (2) Machine Age to Jet Age II

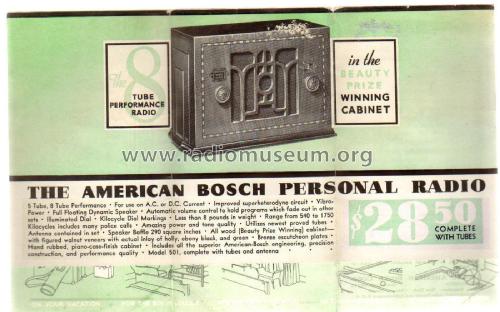

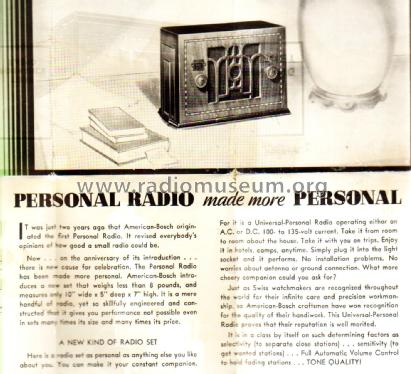

Literature/Schematics (3) -- Original prospect or advert
