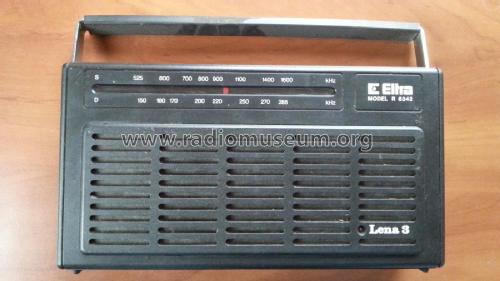

Lena 3 R6342

Unitra ELTRA; Zaklady Radiowe; Bydgoszcz

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 235115

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Lena 3 R6342 - Unitra ELTRA; Zaklady Radiowe;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 244 x 128 x 56 mm / 9.6 x 5 x 2.2 inch
  • Notes

  • Der Koffersuper Lena 3 empfängt FM nach OIRT (65,5 - 74 MHz) und nach CCIR (87,5 - 108 MHz). Das Gerät enthält 2 ICs (CXA1111P und UL1482N).

  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
