Przystawka Stereofoniczna PS-742

Przystawka Stereofoniczna PS-742; Unitra ELTRA; (ID = 1879417) Misc Przystawka Stereofoniczna PS-742; Unitra ELTRA; (ID = 1879419) Misc
Use red slider bar for more.

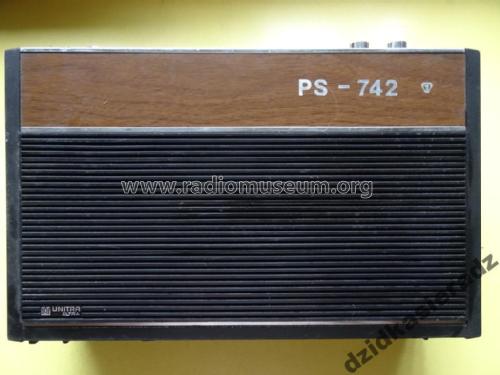

Przystawka Stereofoniczna PS-742; Unitra ELTRA; (ID = 1879417) Misc
Unitra ELTRA;: Przystawka Stereofoniczna PS-742 [Misc] ID = 1879417 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Przystawka Stereofoniczna PS-742, Unitra ELTRA; Zaklady Radiowe; Bydgoszcz:
Image taken form polish online auction portal .allegro.pl. Auction number: 5602683820

Country:  Poland
Manufacturer / Brand:  Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
Year: 1974 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 3: BC211 BC148C BC149C UL1601 TBA790
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / 220 / ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Przystawka Stereofoniczna PS-742 - Unitra ELTRA; Zaklady Radiowe;
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 85 mm / 12.6 x 7.5 x 3.3 inch
Notes

Stereo decoder with ONE power amplifier. It was used with Wanda or Wanda IC radio, connetcted to MPX socket. Wanda worka as left channel power amplifier, PS742 AS stereo decoder and right channel power amplifier

Collectors' prices

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
Here you find 86 models, 78 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
