4-Position Coaxial Switch CX-401

Unknown - CUSTOM BUILT: Taiwan (RC)

  • Year
  • 1980 ??
  • Category
  • Amateur Equipment (Other, but not Key)
  • Radiomuseum.org ID
  • 359162

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 4-Position Coaxial Switch CX-401 - Unknown - CUSTOM BUILT: Taiwan
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 160 x 110 x 50 mm / 6.3 x 4.3 x 2 inch
  • Notes

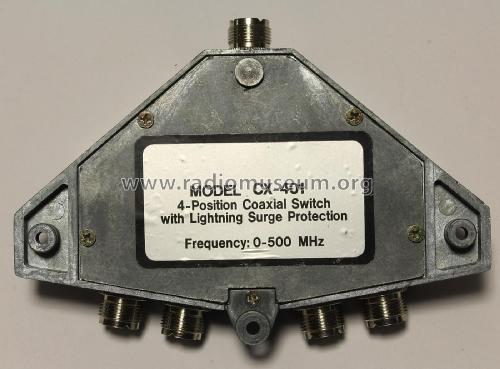

  • 4-Position Coaxial Switch with Lightning Surge Protection CX-401.
    Frequency: 0 ... 500 MHz
    For wall mounting or desk use.

  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
