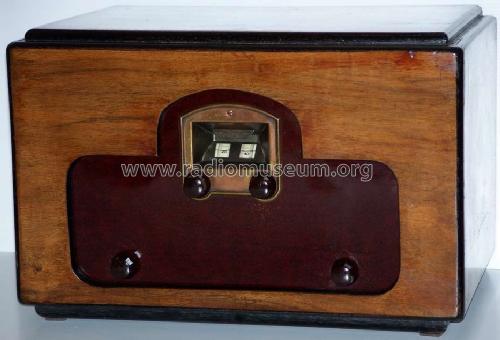

Inconnu - Unknown 75 Cadran Laÿta, Filtres Intégra; Unknown - CUSTOM (ID = 1832176) Radio
Unknown - CUSTOM: Inconnu - Unknown 75 Cadran Laÿta, Filtres Intégra [Radio] ID = 1832176 933x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - Unknown 75 Cadran Laÿta, Filtres Intégra, Unknown - CUSTOM BUILT: France (INCONNU):
The set of tubes includes a B443 power output and a 506 full wave rectifier. The receiver works at 110 or 130 V ac

Country:  France
Manufacturer / Brand:  Unknown - CUSTOM BUILT: France (INCONNU)
Year: 1929 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: E441_7pin E442 E424 B443 unknown_Tube 506
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-130 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Inconnu - Unknown 75 Cadran Laÿta, Filtres Intégra - Unknown - CUSTOM BUILT: France
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Cadran Laÿta, filtres MF Intégra.

A power connector for an external loudspeaker with field excitation coil is provided on the back of the chassis.

Model page created by Roberto Gabba. See "Data change" for further contributors.
