Dinamo AM Receiver

Dinamo AM Receiver ; Unknown - CUSTOM (ID = 2163735) Radio Dinamo AM Receiver ; Unknown - CUSTOM (ID = 1859840) Radio
Dinamo AM Receiver ; Unknown - CUSTOM (ID = 1859838) Radio Dinamo AM Receiver ; Unknown - CUSTOM (ID = 1859839) Radio
Dinamo AM Receiver ; Unknown - CUSTOM (ID = 1859841) Radio
Use red slider bar for more.

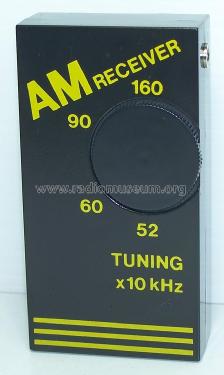

Dinamo AM Receiver ; Unknown - CUSTOM (ID = 2163735) Radio
Unknown - CUSTOM: Dinamo AM Receiver [Radio] ID = 2163735 890x1486
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dinamo AM Receiver, Unknown - CUSTOM BUILT: Italy

Country:  Italy
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Italy
Year: 1987 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) KA22421
Main principle Superheterodyne (common)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker - only for Earphone!
Power out 0.2 W (undistorted)
from Radiomuseum.org Model: Dinamo AM Receiver - Unknown - CUSTOM BUILT: Italy
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 40 x 80 x 30 mm / 1.6 x 3.1 x 1.2 inch
Notes

Made in China.

Net weight (2.2 lb = 1 kg) 0.075 kg / 0 lb 2.6 oz (0.165 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
