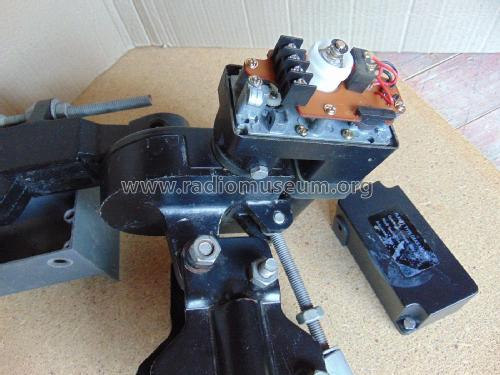

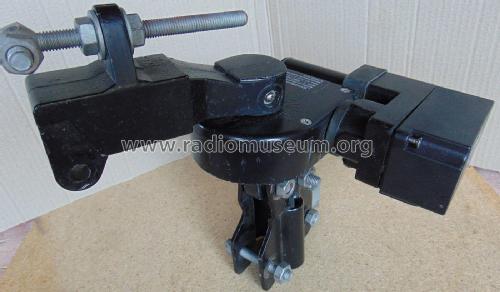

Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S

Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569246) Antenna Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569247) Antenna
Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569248) Antenna Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569249) Antenna
Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569250) Antenna
Use red slider bar for more.
Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S; Unknown - CUSTOM (ID = 2569246) Antenna
Unknown - CUSTOM: Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S [Antenna] ID = 2569246 1400x1080
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1992 ? Category: Antenna (Aerial) or Coupler
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / DC: 36 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Antenna Positioner Motor Supermount HB HH Mount Driver SMRT-32S - Unknown - CUSTOM BUILT: Taiwan
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 280 x 200 x 280 mm / 11 x 7.9 x 11 inch
Notes

Motordrehvorrichtung für SAT-Empfangsspiegel vorgesehen für Mastbefestigung, gesteuert vom Satellitenpositionierer.

Manufactured by Jaeger Ind. Co., in Taiwan R.O.C.

Da Jaeger (UKWtechnik) auch bei Wettersatelliten tätig war/ist, könnte dieses Gerät von seinem Ableger in Taiwan stammen. Verkauft u.a. in den Filialen des Kaufhofs

Documents regarding this model
  Instructions for SMRT-32S+ Antenna Bracket 475 KB

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
