Artificial plush radio, red

Artificial plush radio, red ; Unknown - CUSTOM (ID = 470003) Radio Artificial plush radio, red ; Unknown - CUSTOM (ID = 470004) Radio
Artificial plush radio, red ; Unknown - CUSTOM (ID = 470005) Radio Artificial plush radio, red ; Unknown - CUSTOM (ID = 470006) Radio
Use red slider bar for more.
Artificial plush radio, red ; Unknown - CUSTOM (ID = 470003) Radio
Unknown - CUSTOM: Artificial plush radio, red [Radio] ID = 470003 798x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Artificial plush radio, red, Unknown - CUSTOM BUILT: China:

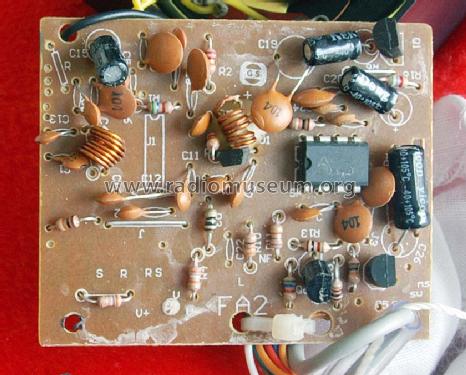

Artificial Plush radio from China (GS, FA2 are the markings on the board)

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 1999 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: S9014 BS107 S8550 CD9088 YD2822A
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Artificial plush radio, red - Unknown - CUSTOM BUILT: China
Material Leather / canvas / plastic - over other material
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 230 x 160 x 70 mm / 9.1 x 6.3 x 2.8 inch
Notes Red artificial plush radio with handle (German = Plüschradio) - without any markings - except "Made in China" on the battery case. It is a typical scanner radio for FM. 6 buttons for ON, OFF, Seek, Reset and volum lower, volume higher. The radio is made with 2 IC's (8 and 16 legs) plus three transistors. The 8-pin-IC is D2822A matches the dual channel audio power amplifier YD2822A which is designed for mini cassette players and radios. The transistors seem to be S9014 (C331), BS107 (PH ??) and S8550 (D331).
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Ernst Erb. See "Data change" for further contributors.
