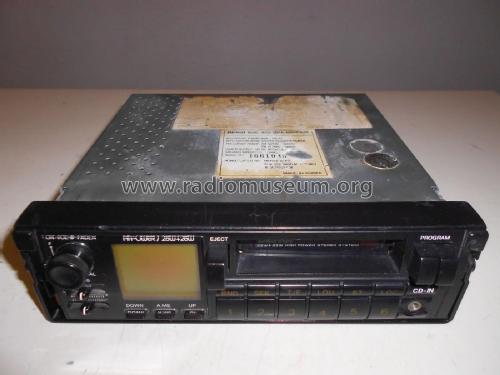

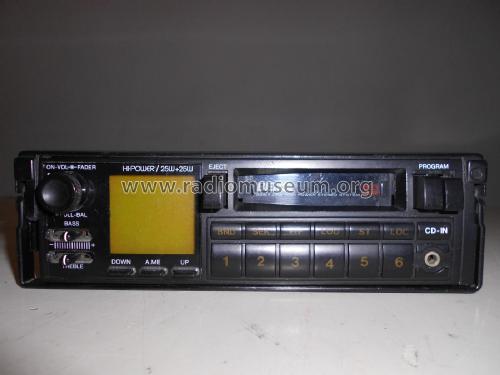

Bensi High Power Stereo System BN-921

Unknown - CUSTOM BUILT: Italy

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 304757

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Bensi High Power Stereo System BN-921 - Unknown - CUSTOM BUILT: Italy
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 172 x 48 x 170 mm / 6.8 x 1.9 x 6.7 inch
  • Notes

  • controllo volume/bass/treble/balance/fader - display frontale - potenza uscita: 25+25 watt max - impedenza altoparlanti: 4Ω - frequency range: AM 522/1620 kHz - FM 87.5/108 MHz - negative ground - 12 stazioni presintonizzabili - presa frontale CD-In - tasti riproduttore a cassette stereo 7:  play/eject/ff.ww/rew/dir. - selettore band -seek -T/F - loudeness -stereo/mono - locale/dist. - memoria - UP/Down frequency - maniglia di trasporto.

    Made in Korea

  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
