Brand ; Unknown Worldwide (ID = 1895458) Radio

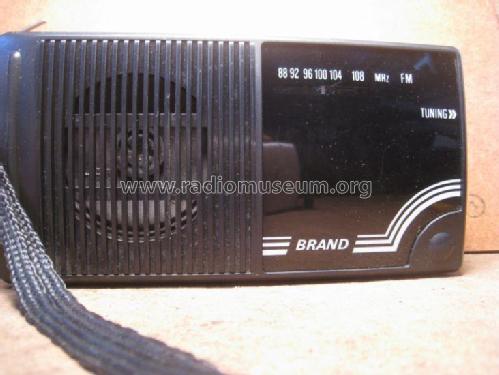

Unknown Worldwide: Brand [Radio] ID = 1895458 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brand, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Tuned circuits 7 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (undistorted)
from Radiomuseum.org Model: Brand - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 70 x 30 mm / 5.3 x 2.8 x 1.2 inch
Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
