Bridge 376b
Savage; (where?)
- Country
- Italy
- Manufacturer / Brand
- Savage; (where?)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 181455
- Number of Transistors
- 5
- Semiconductors
- BF253 BF255 TBA820 unknown_tr unknown_tr unknown_tr
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

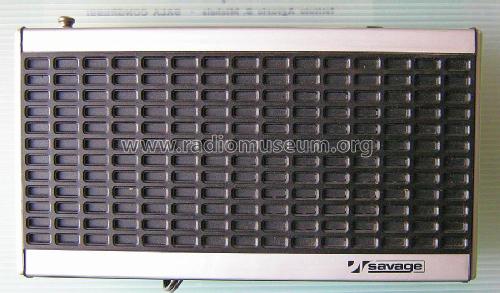

- Model: Bridge 376b - Savage; where?
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 142 x 60 mm / 10.2 x 5.6 x 2.4 inch
- Notes
-
Tuning range: FM 88 - 108 MHz, AM 550 - 1600 kHz
Ferrite antenna: 11 cm

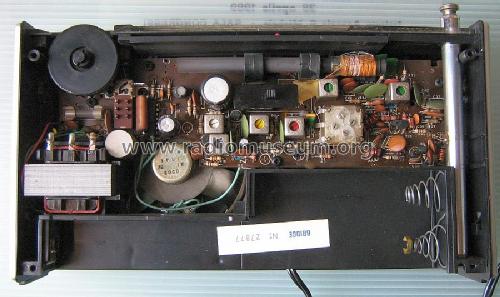

Non-detachable power cord. No jacks. On/off button on the top. Mains/battery switch in the battery compartment.The speaker chassis is marked with "9P01, 8 ohm, 1W, BOGO". Label "Made in Italy" in battery compartment.
The appearance e.g. of the dial scale suggests it to be a clone of the Grundig Magic Boy 300.
FM da 88 a 108 MHz, AM da 550 a 1600 kHz; antenna di ferrite di 11 cm. Sull'altoparlante le indicazioni: 9P01, 8 ohm, 1W, BOGO. Il cavo elettrico non si può staccare, non ci sono prese. Tasto di accensione/spegnimento sul lato superiore. Sotto lo sportello delle pile si trovano l'interruttore rete/batterie e la scritta made in Italy.
La scala di sintonia, assieme ad altri particolari, fanno pensare ad un clone dell'apparecchio Grundig Magic Boy 300.
- Net weight (2.2 lb = 1 kg)
- 1.020 kg / 2 lb 3.9 oz (2.247 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
