Brillant

Brillant ; Unknown Europe (ID = 435198) Kit
Brillant ; Unknown Europe (ID = 2439982) Kit Brillant ; Unknown Europe (ID = 2439984) Kit
Brillant ; Unknown Europe (ID = 2439986) Kit
Use red slider bar for more.

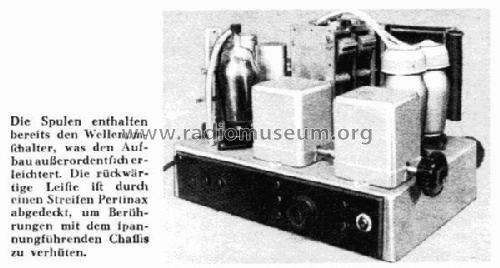

Brillant ; Unknown Europe (ID = 2439982) Kit
Unknown Europe: Brillant [Kit] ID = 2439982 600x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brillant, Unknown Europe:
Funkschau 4/37

Country:  Europe
Manufacturer / Brand:  Unknown Europe
alternative name

Unbekannt Europa
Year: 1936 ? Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 4: CH1 CH1 CL4 CY1
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Brillant - Unknown Europe
Material Various materials
Shape Tablemodel, low profile (big size).
Price in first year of sale 133.00 RM

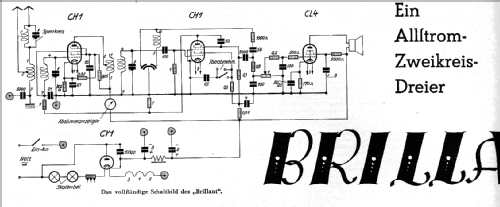

Literature/Schematics (1) Funkschau (1937, Nr.4)

Model page created by Egon Strampe. See "Data change" for further contributors.



All listed radios etc. from Unknown Europe
Here you find 188 models, 159 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
