• Country
• Hong Kong

• Manufacturer / Brand
• Aitron (brand), Asia International Electronics, Ltd (AIE); Hong Kong

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121834

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

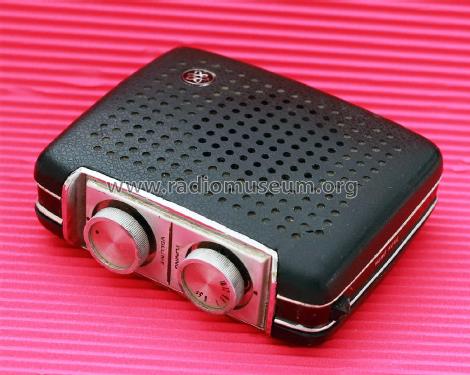

• Model: Choc-Trade AIE1141 - Aitron brand, Asia

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 80 x 25 x 70 mm / 3.1 x 1 x 2.8 inch

• Notes

• Similar models listed here

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Source of data
• - - Data from my own collection
