Hi-Fi 2 Band 8 Transistor CR-85 (Japan 109)

Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 335224) Radio Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 335225) Radio
Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 401160) Radio Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 401162) Radio
Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 401164) Radio Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 401166) Radio

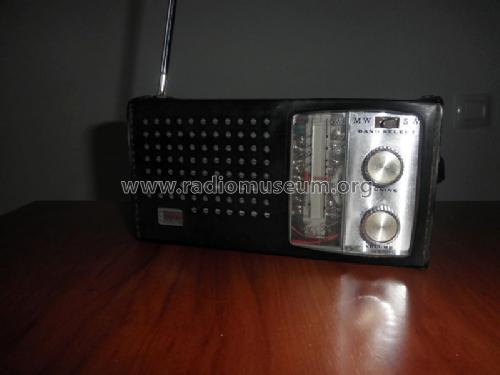

Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 958866) Radio Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 1611893) Radio

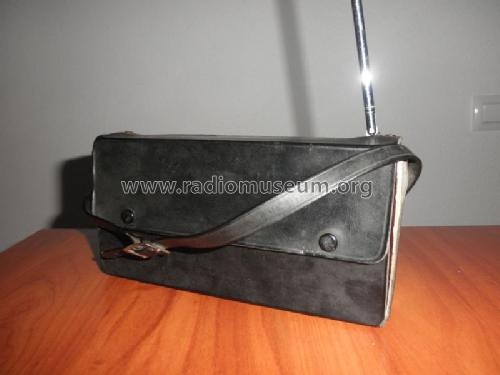

Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 1611894) Radio Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 1611895) Radio
Use red slider bar for more.
Hi-Fi 2 Band 8 Transistor CR-85 ; Coney Onkyo Co. Ltd. (ID = 335224) Radio
Coney Onkyo Co. Ltd.: Hi-Fi 2 Band 8 Transistor CR-85 [Radio] ID = 335224 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi 2 Band 8 Transistor CR-85 (Japan 109), Coney Onkyo Co. Ltd. (Conion); Kobe:
Vendu

Country:  Japan
Manufacturer / Brand:  Coney Onkyo Co. Ltd. (Conion); Kobe
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA104 2SA104 2SA203 2SA203 2SB186 2SB186 2SB187 2SB187
Main principle Super-Heterodyne (Super in general); 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Hi-Fi 2 Band 8 Transistor CR-85 - Coney Onkyo Co. Ltd. Conion;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 185 x 100 x 45 mm / 7.3 x 3.9 x 1.8 inch
Notes

MW = 540···1600 kHz,
SW = 3,8···12 MHz.

See also Coney ATR-852

Made in Japan 109

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Ervé Leclercq. See "Data change" for further contributors.
