Cutty Sark FM/AM 2Band Receiver with flashlight
Use red slider bar for more.

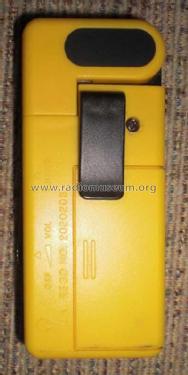

Unknown - CUSTOM: Cutty Sark FM/AM 2Band Receiver with flashlight [Radio] ID = 1707289 400x796
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1992 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. LA1800 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | Radio with other functions |
| Power type and voltage | Dry Batteries / 2 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Cutty Sark FM/AM 2Band Receiver with flashlight - Unknown - CUSTOM BUILT: GB |
| Material | Plastics (no bakelite or catalin) |
| Shape | Design Radio or Novelty / Gadget - fancy or unusual shape. |
| Dimensions (WHD) | 40 x 92 x 27 mm / 1.6 x 3.6 x 1.1 inch |
| Notes | "Cutty Sark" Original Scots Whisky FM/AM 2Band Receiver. Radio with flip-open flashlight / torch. Headphone jack. 3 Operation modes: Light, FM, AM. UK registered design no. 2020203.
|
Model page created by Francisco Rivadulla Prieto. See "Data change" for further contributors.
