Diamond Cleveland 500

Unknown - CUSTOM BUILT: Italy

Data
Forum
Pictures
Collections

  • Year
  • 1970–1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 302672

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Diamond Cleveland 500 - Unknown - CUSTOM BUILT: Italy
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 255 x 160 x 70 mm / 10 x 6.3 x 2.8 inch
  • Notes

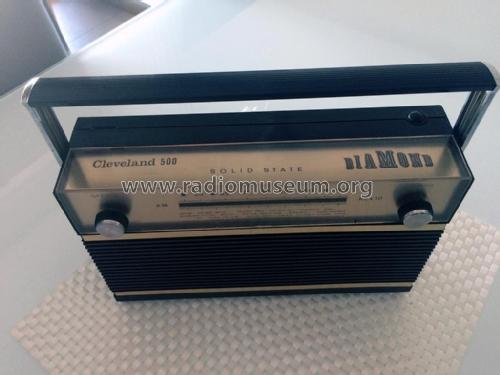

  • Probably "garage made" in Italy. The Speaker in marked "C.E.M.C.", the electrolytics are "ORION" and the variabile capacitor is "SAN-ESU". There are no labels or references from the manufacturer. The dial is marked "Diamond - Cleveland 500 - Solid State". The radio was not built in the UK.

  • Net weight (2.2 lb = 1 kg)
  • 0.350 kg / 0 lb 12.3 oz (0.771 lb)
  • Author
  • Model page created by Massimo Maceli. See "Data change" for further contributors.
