Electronica Goldstar S631T

Electronica Goldstar S631T; Electronica S.A (ID = 1955241) Radio
Electronica Goldstar S631T; Electronica S.A (ID = 1013653) Radio Electronica Goldstar S631T; Electronica S.A (ID = 1013654) Radio
Electronica Goldstar S631T; Electronica S.A (ID = 1013655) Radio Electronica Goldstar S631T; Electronica S.A (ID = 1013656) Radio
Electronica Goldstar S631T; Electronica S.A (ID = 1013657) Radio Electronica Goldstar S631T; Electronica S.A (ID = 1013658) Radio
Electronica Goldstar S631T; Electronica S.A (ID = 1013659) Radio Electronica Goldstar S631T; Electronica S.A (ID = 1013660) Radio
Electronica Goldstar S631T; Electronica S.A (ID = 1956061) Radio Electronica Goldstar S631T; Electronica S.A (ID = 1956063) Radio
Use red slider bar for more.
Electronica Goldstar S631T; Electronica S.A (ID = 1013653) Radio
Electronica S.A: Electronica Goldstar S631T [Radio] ID = 1013653 900x611
Select picture or schematic to display from thumbnails on the right and click for download.

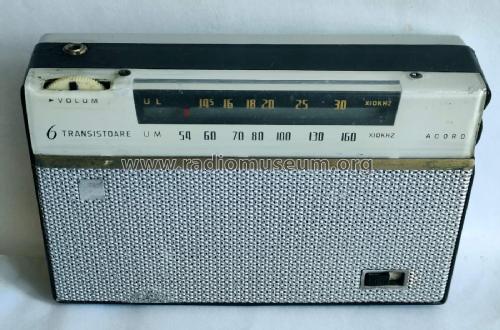

For model Electronica Goldstar S631T, Electronica S.A Bucharest

Country:  Romania
Manufacturer / Brand:  Electronica S.A Bucharest
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Electronica Goldstar S631T - Electronica S.A Bucharest
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 139 x 88 x 39 mm / 5.5 x 3.5 x 1.5 inch
Notes

Electronica goldstar MW/LW S6311 portable radio with leather case, speaker/headphone socket, ABS cabinet, speaker grill metal, scale acryl, no origin marks.

First portable radio made in Romania.  Export units carried the "Goldstar" name, while the Romainian market models were sold under the "Zephir" brand.

Net weight (2.2 lb = 1 kg) 0.490 kg / 1 lb 1.3 oz (1.079 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.



All listed radios etc. from Electronica S.A Bucharest
Here you find 71 models, 60 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
