For model Emperor AIE-641, Emperor; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Emperor; Hong Kong
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 1 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Emperor AIE-641 - Emperor; Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 80 x 25 mm / 2.8 x 3.1 x 1 inch
Notes

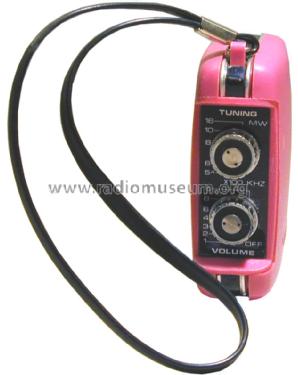

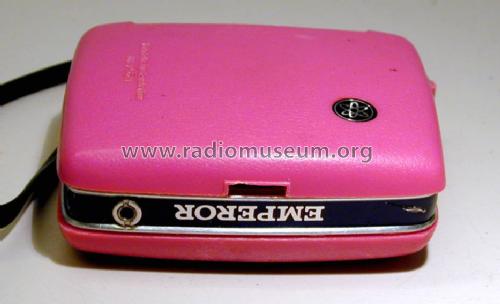

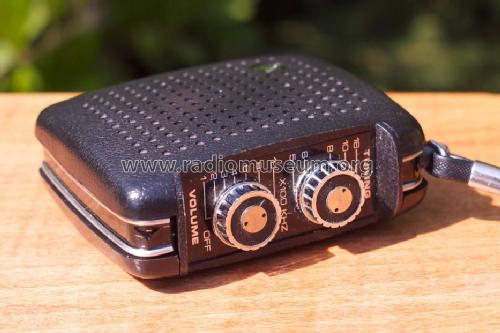

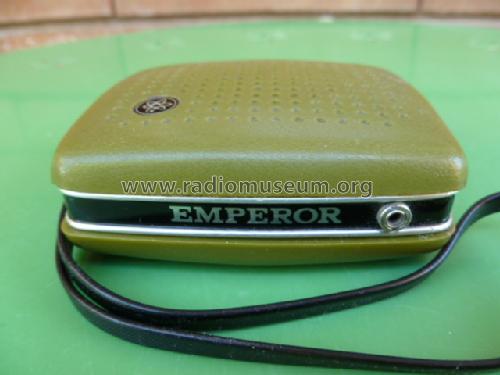

Mini portable radio with carrying strap, made in various bright cabinet colors.

The model was also made for the French market with LW only, but not produced in Hong Kong due to licence issues. These models were produced either in Macao, Philippines or Singapore.

Similar models listed here



Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Collectors' prices

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Emperor; Hong Kong
Here you find 9 models, 8 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Emperor; Hong Kong: Emperor AIE-641
Threads: 1 | Posts: 1
Hits: 1306     Replies: 0
emperor: AIE-641; Emperor
Rudolf Drabek
01.Jul.14
  1

Dieses Gerät ist schon unter den ID's (oben rechts) 73139, 119113, 123541, 180519,

 201979 ähnlich, angelegt. Zum Teil auch für LW und Längstwellen entwickelt.Das Schaltbild, das nur einmal vorkommt, dürfte für alle Modelle in etwa gleich sein.

Mein Modell hat keinen Ohrhöreranschluß.  Für die nur 1,5 V Speisespannung überraschend empfindlich. Man merkt jedoch die kurze Ferritantenne.
