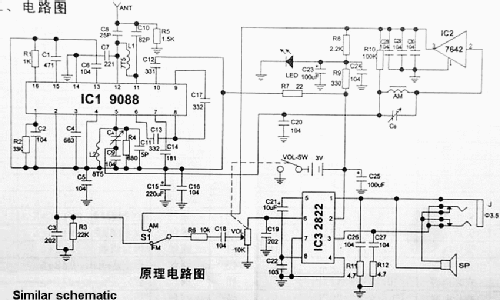

ES-16789-1; Unknown - CUSTOM (ID = 2023170) Radio
ES-16789-1; Unknown - CUSTOM (ID = 803838) Radio ES-16789-1; Unknown - CUSTOM (ID = 803839) Radio

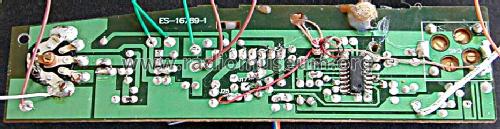

ES-16789-1; Unknown - CUSTOM (ID = 803840) Radio ES-16789-1; Unknown - CUSTOM (ID = 803841) Radio
ES-16789-1; Unknown - CUSTOM (ID = 803842) Radio ES-16789-1; Unknown - CUSTOM (ID = 803843) Radio
ES-16789-1; Unknown - CUSTOM (ID = 803844) Radio ES-16789-1; Unknown - CUSTOM (ID = 803845) Radio
Use red slider bar for more.
ES-16789-1; Unknown - CUSTOM (ID = 803838) Radio
Unknown - CUSTOM: ES-16789-1 [Radio] ID = 803838 933x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model ES-16789-1, Unknown - CUSTOM BUILT: China

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. TA7642 TDA2822 CD9088
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio with other functions
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: ES-16789-1 - Unknown - CUSTOM BUILT: China
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 300 x 50 x 170 mm / 11.8 x 2 x 6.7 inch
Notes Radio zur Montage unter ein Möbelteil, z.B. für Küche, Schlafzimmer, etc. Mit Beleuchtung und herausnehmbarer Digitaluhr. Wurfantenne für UKW, Ferritstab für MW. Externe Speisung möglich, drei ICs.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data - - Data from my own collection

Model page created by a member from D. See "Data change" for further contributors.
