• Country
• Spain

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Spain

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 309427

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF183 EABC80 6BQ5 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

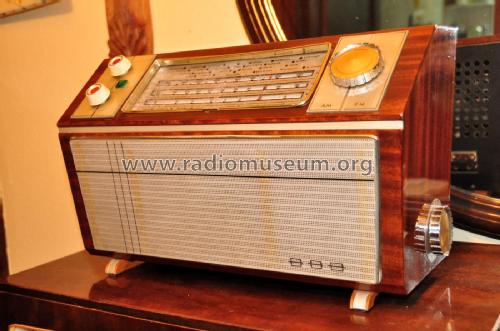

• Model: Estudio AM-FM R88 - Unknown - CUSTOM BUILT: Spain

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 400 x 230 x 170 mm / 15.7 x 9.1 x 6.7 inch

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Mario Berta. See "Data change" for further contributors.
