• Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 156133

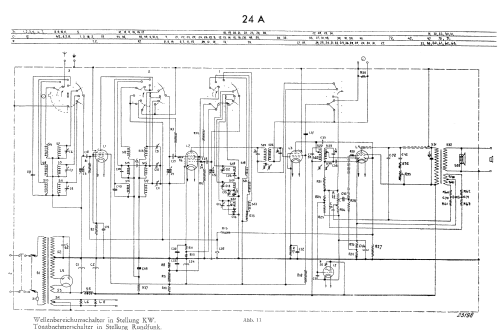

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 473 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: M64A - Mediator; La Chaux-de-Fonds
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 570 x 360 x 240 mm / 22.4 x 14.2 x 9.4 inch
  • Notes
  • 8 Festsendertasten.
  • Author
  • Model page created by Ottmar Lauth. See "Data change" for further contributors.
