• Country
• Japan

• Manufacturer / Brand
• Fukoku Electro-Ind., Co. Ltd.; (where?)

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243343

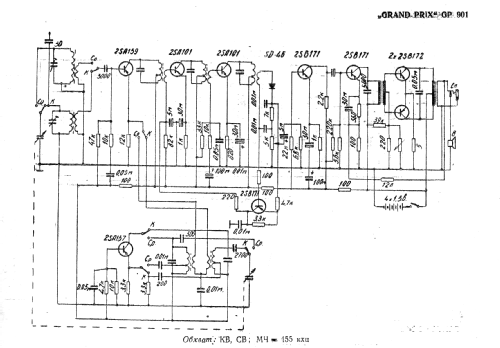

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA157 2SA159 2SA101 2SA101 2SB171 2SB171 2SB171 2SB172 2SB172

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / UM-3: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Grandprix Transistor 9 GP-901 - Fukoku Electro-Ind., Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 80 x 35 mm / 6.7 x 3.1 x 1.4 inch

• Notes

• Grand Prix Portable 2Band 9-Transistor Radio Model Grand Prix GP-901.
  Receiving Range: AM 540 - 1600 KHz, SW 6 - 18 MHz
  Leather Carrying Case.
  Housing plastic, front grille chrome plated aluminium.
  Telescopic Antenna.

  Similar to Grand Marc GP-901, and Grand Prix GP-901.


• Net weight (2.2 lb = 1 kg)
• 1 lb 0 oz (1 lb) / 0.454 kg

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
