• Year
  • 1978 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 134303

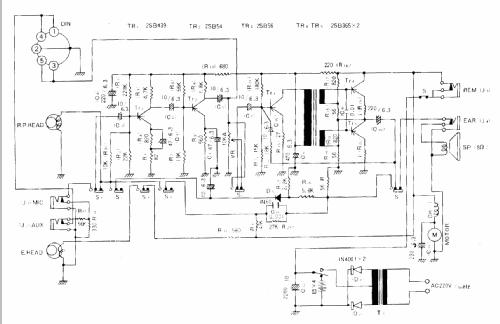

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 4 x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hellas 7060 - Unknown - CUSTOM BUILT: Taiwan
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • 2-Spur Mono-Gerät, Frequenzbereich 200 bis 6000 Hz, Ohrhörerbuchse, Buchse für Überspielkabel, Mikrofonanschluß, Diodenanschlußbuchse.
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
