Koncert - Концерт Tablemodel

Koncert - Концерт ; Ekran plant; Samara (ID = 942637) TV Radio
Koncert - Концерт ; Ekran plant; Samara (ID = 2227103) TV Radio Koncert - Концерт ; Ekran plant; Samara (ID = 942640) TV Radio
Koncert - Концерт ; Ekran plant; Samara (ID = 942642) TV Radio Koncert - Концерт ; Ekran plant; Samara (ID = 942636) TV Radio
Koncert - Концерт ; Ekran plant; Samara (ID = 942638) TV Radio Koncert - Концерт ; Ekran plant; Samara (ID = 942639) TV Radio
Koncert - Концерт ; Ekran plant; Samara (ID = 942641) TV Radio
Use red slider bar for more.
Koncert - Концерт ; Ekran plant; Samara (ID = 2227103) TV Radio
Ekran plant; Samara: Koncert - Концерт [TV Radio] ID = 2227103 1400x1660
Select picture or schematic to display from thumbnails on the right and click for download.
For model Koncert - Концерт Tablemodel, Ekran plant; Samara

Country:  Soviet Union
Manufacturer / Brand:  Ekran plant; Samara
Year: 1961–1964 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 24: 6Н3П 6И1П 6К4П 6Х2П 6Н2П 6П14П 6Е5С 6Н14П 6Ф1П 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6Ж5П 6П15П 6Ф1П 6Н1П 6П18П 6Н1П 6П13С 6Ц10П 1Ц11П 43ЛК3Б or 43ЛК2Б
Main principle Super-Heterodyne (Super in general)
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Koncert - Концерт [Tablemodel] - Ekran plant; Samara
Material Wooden case
Shape Tablemodel, low profile (big size).

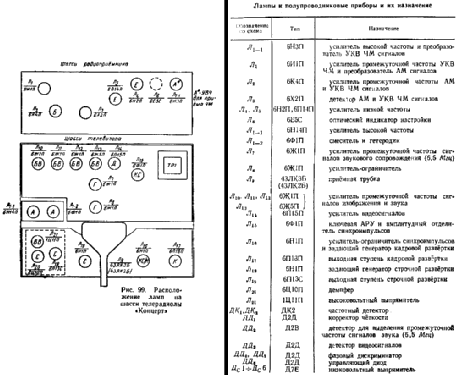

Literature/Schematics (1) G.P. Samojlov, 1965

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Ekran plant; Samara
Here you find 5 models, 4 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
