• Country
• People's Republic of China

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: China

• Year
• 1987 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162515

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Note Book Radio A8800 - Unknown - CUSTOM BUILT: China

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 255 x 300 x 45 mm / 10 x 11.8 x 1.8 inch

• Notes

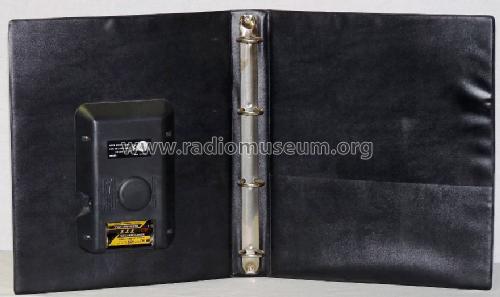

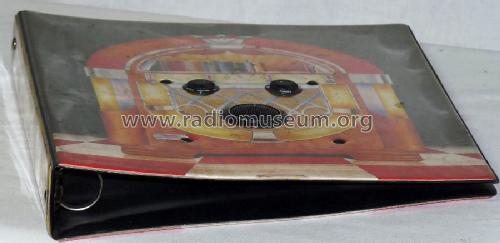

• FM-Radio in einem DIN-A4 Ordner eingebaut, Frequenzbereich: 87,5 - 108 MHz, Maße Radio (BHT)110 x 160 x 18 mm, Alle Funktionen (HF+NF) in einem Chip der Type: CXA 1191M, Kopfhöreranschluß über Klinkenbuchse 3,5 mm

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
