Oscar solid state

Oscar solid state; Unknown - CUSTOM (ID = 869007) Radio Oscar solid state; Unknown - CUSTOM (ID = 869008) Radio
Use red slider bar for more.

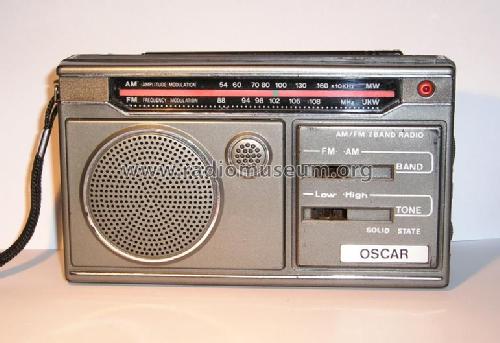

Oscar solid state; Unknown - CUSTOM (ID = 869007) Radio
Unknown - CUSTOM: Oscar solid state [Radio] ID = 869007 771x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscar solid state, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: unknown_tr S9012 S9013 S9012 S9012 S9014 2SC1457 2SC1457
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out
from Radiomuseum.org Model: Oscar solid state - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 93 x 40 mm / 6.3 x 3.7 x 1.6 inch
Notes Colour: gray
Source of data - - Data from my own collection

Model page created by Mario Coelho. See "Data change" for further contributors.
